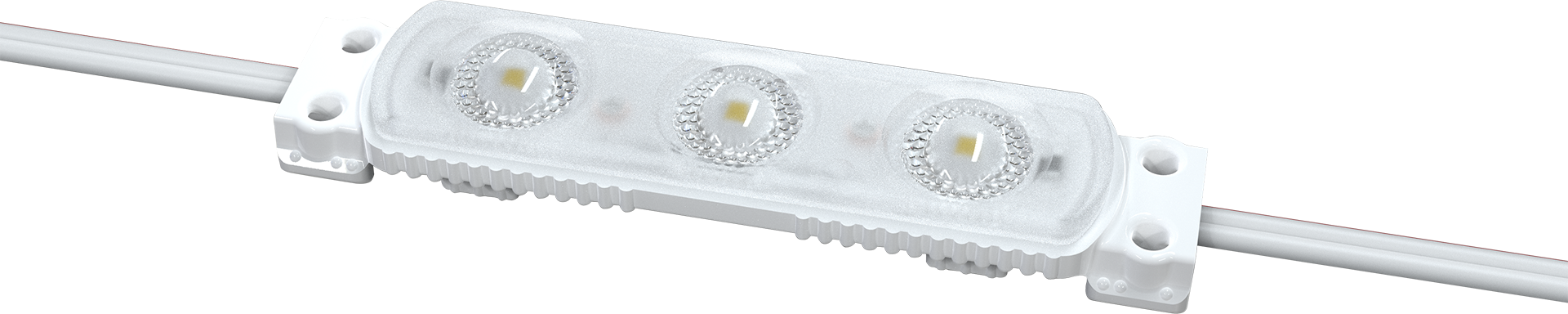

TMT Midi 3

Best for medium and large channel letters Up to 113Lm/W

The TMT LEDs Midi 3 module is designed for use in medium to large channel letters and sign cabinets. The advanced CrystaLens optics have a viewing angle of over 160° that expands the coverage of the light dispersion over a larger area, minimizing the number of modules per sign than competing products.

All of the TMT Midi Series modules are compatible with the game changing TMT Midi Stick with the revolutionary snap in technology. No need to tape it, screw it or glue it, just snap it and go! TMT Midi 3 Series modules include the unique Cable Hiding Technology that allows installers to adjust the spacing between modules, securing excess wire behind the module without needing separate holders, clips or silicone.

Features

  • Cable Hiding Technology
  • Efficient Circuit Design
  • Clean White Technology
  • Snap-in Compatible to TMT Midi Sticks
  • Up to 150 Lumens per module and 113 lumens per watt
TMT Midi 3

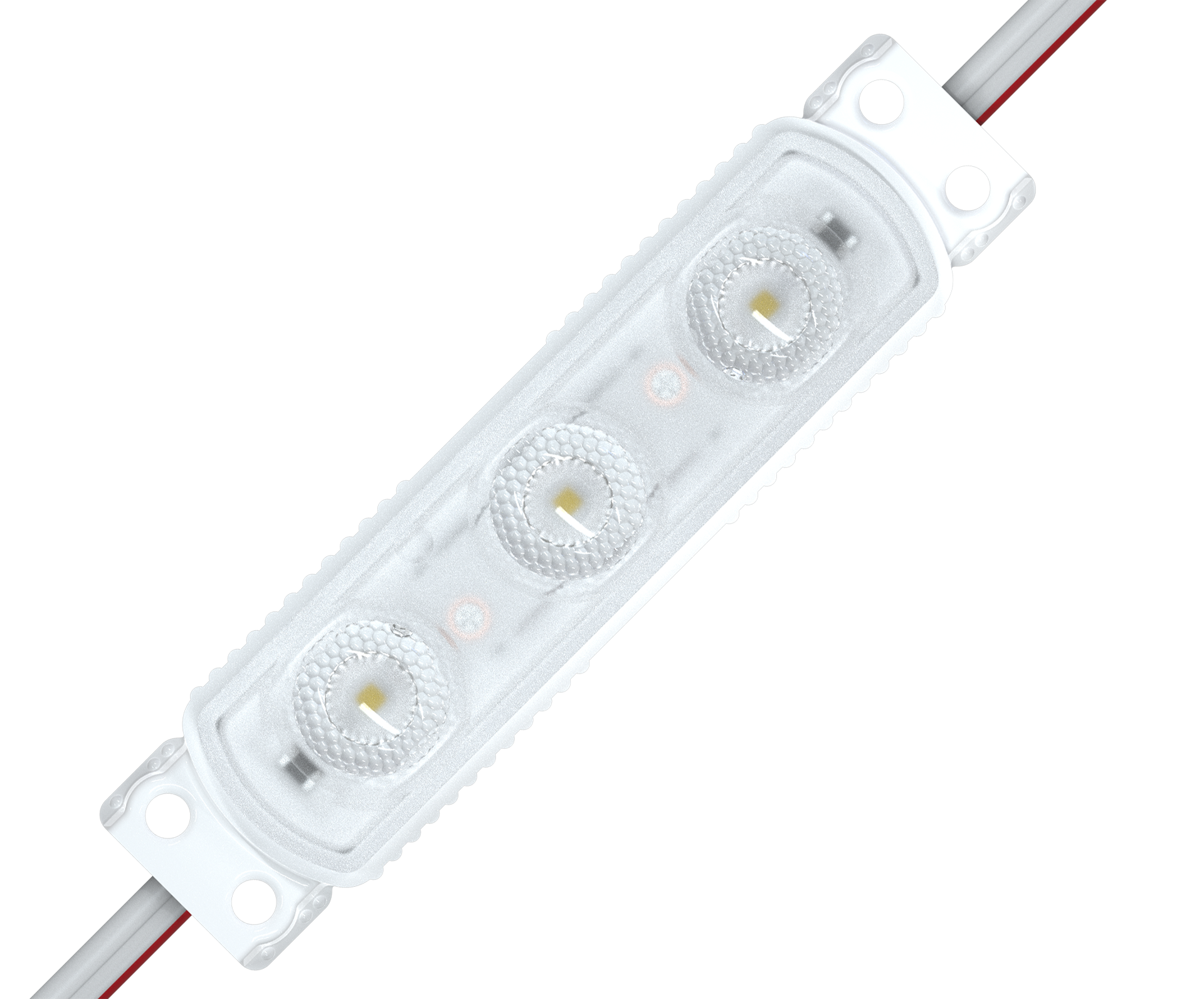

midi-3-capraz

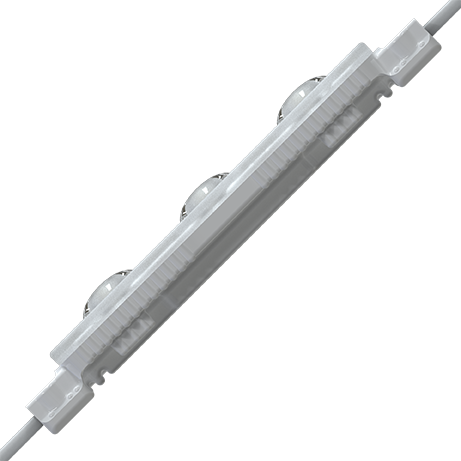

midi-3-s
midi-3-diger
TMT MIDI 3
FOR MEDIUM AND LARGE CHANNEL LETTERS
UP TO
5 YEAR
WARRANTY
UP TO
113 Lm
PER WATT
12 V
POWER OPTIONS
160°
BEAM ANGLE
TMT Midi 3

Technical Specifications

Operating Temperature:
-22°F to +140°F
Body Material:
Case: ABS | Optics: Optical PC
Finishing:
Ultrasonic Welding
Lifetime (Tm21):
>60,000 Hours
Adhesive Tape:
3M Foam
Strip Size:
50 Modules / Strip

Product Models

Watt CCT / Color Order Code Input Lumen Efficiency C2C 60W PS Load Module / Foot Lumen / Foot Watt / Foot
1.5 W 6.500K TMT-104244 12V 170 LM 113 LM/W 7.87” 34 PCS 1.5 PCS 255 LM 2.29 W
