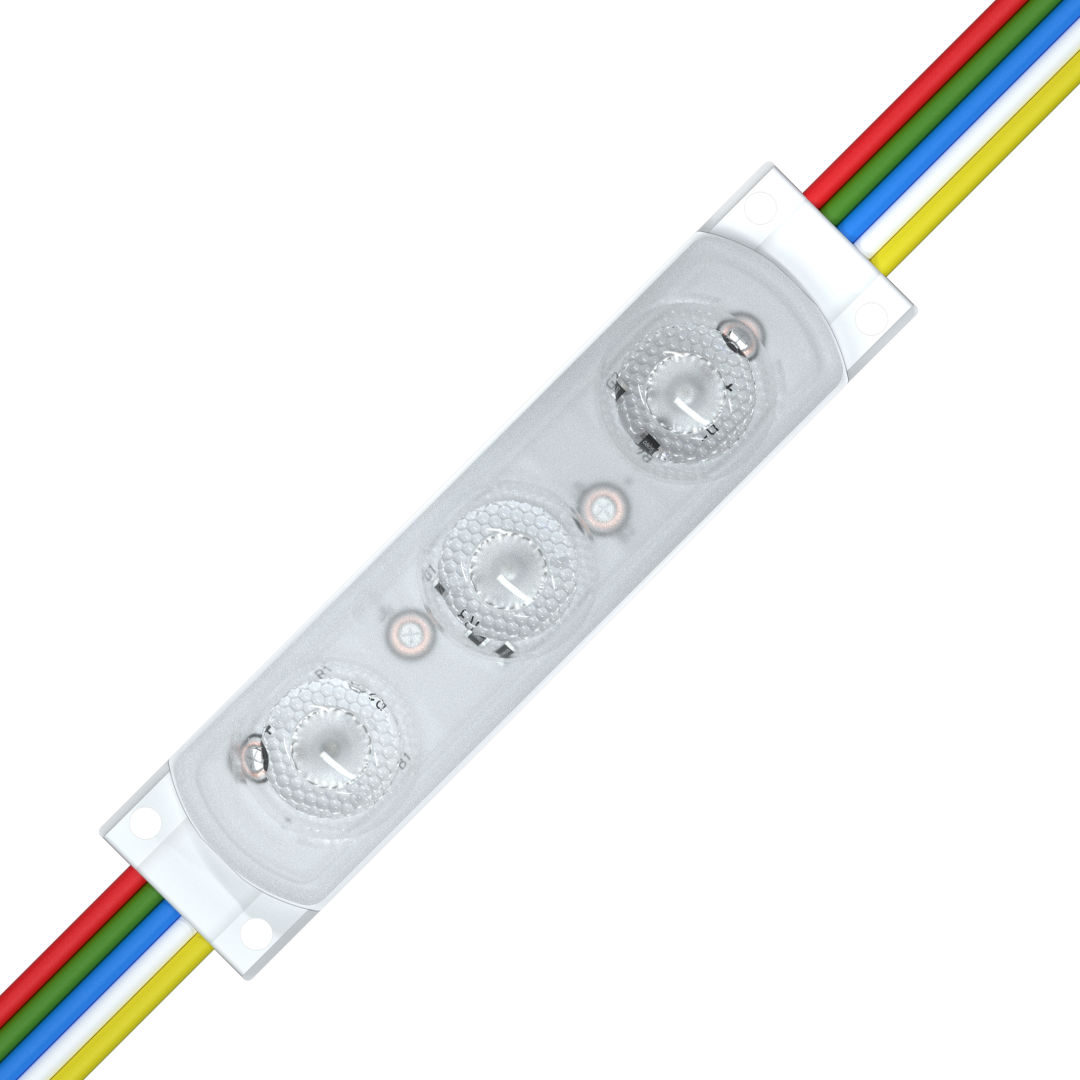

TMT Midi 3 RGB

RGB Lighting Solution for Channel Letters

TMT MIDI 3 RGB is engineered to deliver full-color control and exceptional performance in channel-letter and decorative lighting applications. Compact at just 3.15″ (≈80 mm) long, each module houses a powerful RGB trio that provides vivid, uniform illumination, while its 160° wide beam angle ensures brightness reaches every corner of your letters. With an IP67 rating and an operating range of –30 °C to +60 °C, it stands up to the harshest outdoor conditions.

Each module draws just 1.2 W at 12 V and boasts a lifespan exceeding 50,000 hours, ensuring reliable operation even under continuous use. The durable ABS housing, optical PC lens, and ultrasonic welding combine to resist mechanical and environmental stresses. Installation is effortless thanks to 3M™ high-strength foam tape, and modules are supplied in convenient strips of 50 or in bulk boxes of 1,000 for streamlined logistics.

Backed by a 5-year warranty and CE & RoHS approvals, TMT MIDI 3 RGB is the ideal choice for professionals seeking vibrant color transitions, high efficiency, and long-lasting performance in channel-letter lighting.

COMING SOON

midi-rgb
rgb-capraz
rgb-module-yandan
rgb-gallery
Wire Colors

Red (Red)

Green (Green)

Blue (Blue)

White (White)

Yellow (+ Positive)

Technical Specifications

Operating Temperature:
-22°F to +140°F
Body Material:
Case: ABS | Optics: Optical PC
Finishing:
Ultrasonic Welding
Lifetime (Tm21):
>60,000 Hours
Adhesive Tape:
3M Foam
Strip Size:
25 Modules / Strip
Ultra Slim Design

Product Models

CCT / COLOR ORDER CODE INPUT LUMEN EFFICIENCY C2C 60W PS LOAD MODULE / FOOT LUMEN / FOOT WATT / FOOT
1.2 W
RGB
TMT-107680 12 V 16 LM 13.3 LM/W 7.87″ 44 PCS 1.5 PCS 24 LM 1.83 W
28 LM 23.3 LM/W 43 LM
8 LM 6.7 LM/W 12 LM
