TMT Midi 4

Game Changer Channel Letter Module Up to 170 Lm/W

Powerfully Efficient. Exceptionally Bright.

Introducing the all-new TMT MIDI 4 a revolutionary module engineered with efficiency at its core. Featuring advanced CrystaLens optics with a wide 170° beam angle, this powerful module delivers bright, uniform illumination across large surfaces, dramatically reducing the number of modules required and eliminating hotspots.

Thanks to its high-performance circuit design, the TMT MIDI 4 outshines every competitor in its class. You can achieve the same level of brightness using three times fewer modules, while cutting energy consumption by up to 30%. It’s the ultimate solution for large channel letters, sign cabinets, and fluorescent retrofit projects.

Fewer modules. Lower power. Maximum impact. Less Cost.
TMT Midi 4 redefines what’s possible in LED signage lighting

Features

  • Powerfully Efficient. Exceptionally Bright.
  • Advanced CrystaLens optics with a wide 170° beam angle
  • High-performance circuit design
  • Achieve the same level of brightness using three times fewer modules
  • Cut energy consumption by up to 30%
  • Perfect for large channel letters, sign cabinets, and fluorescent retrofit projects
  • Fewer modules. Lower power, Maximum impact, Less Cost
  • Snap-in Compatible with TMT Midi Sticks

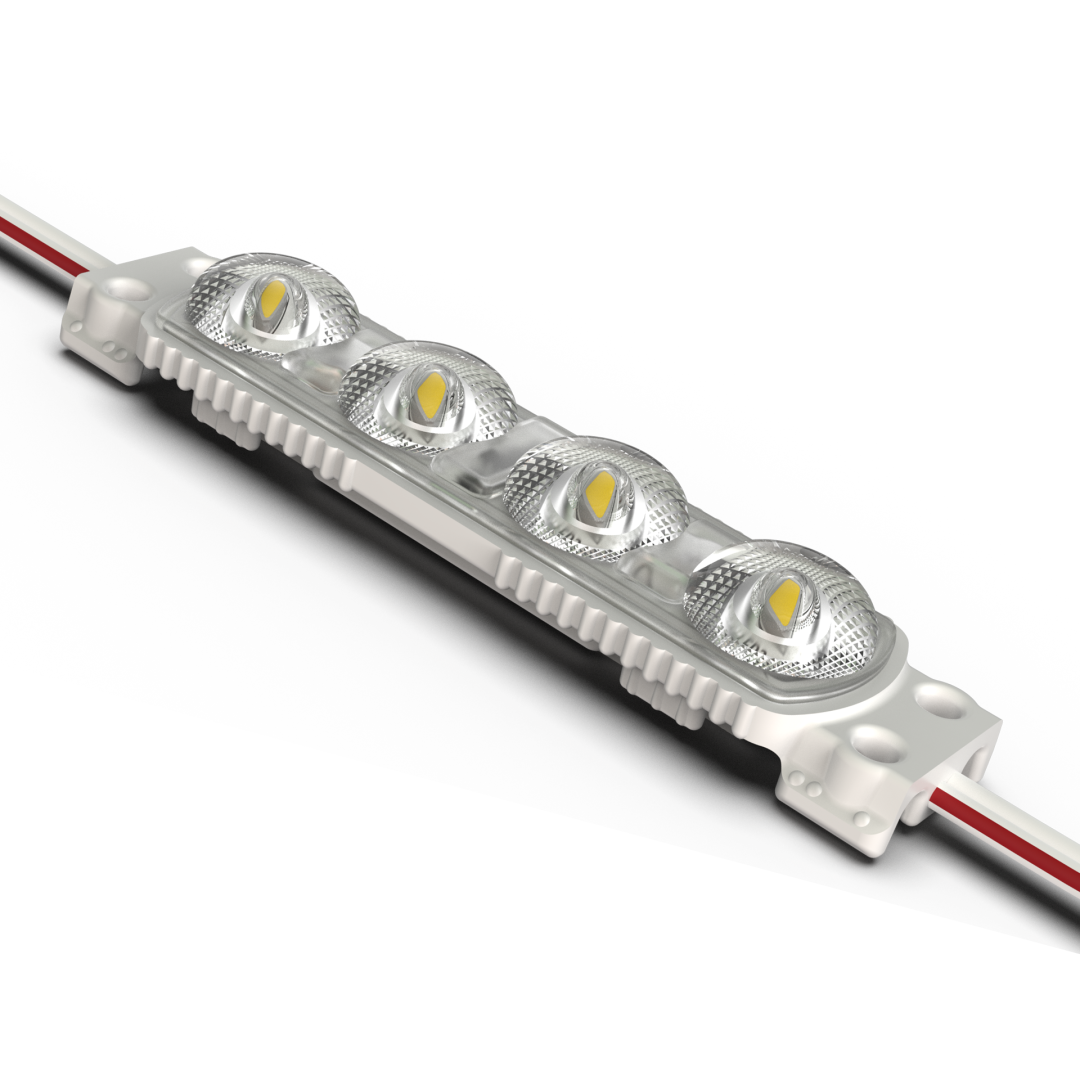

midi-4-1

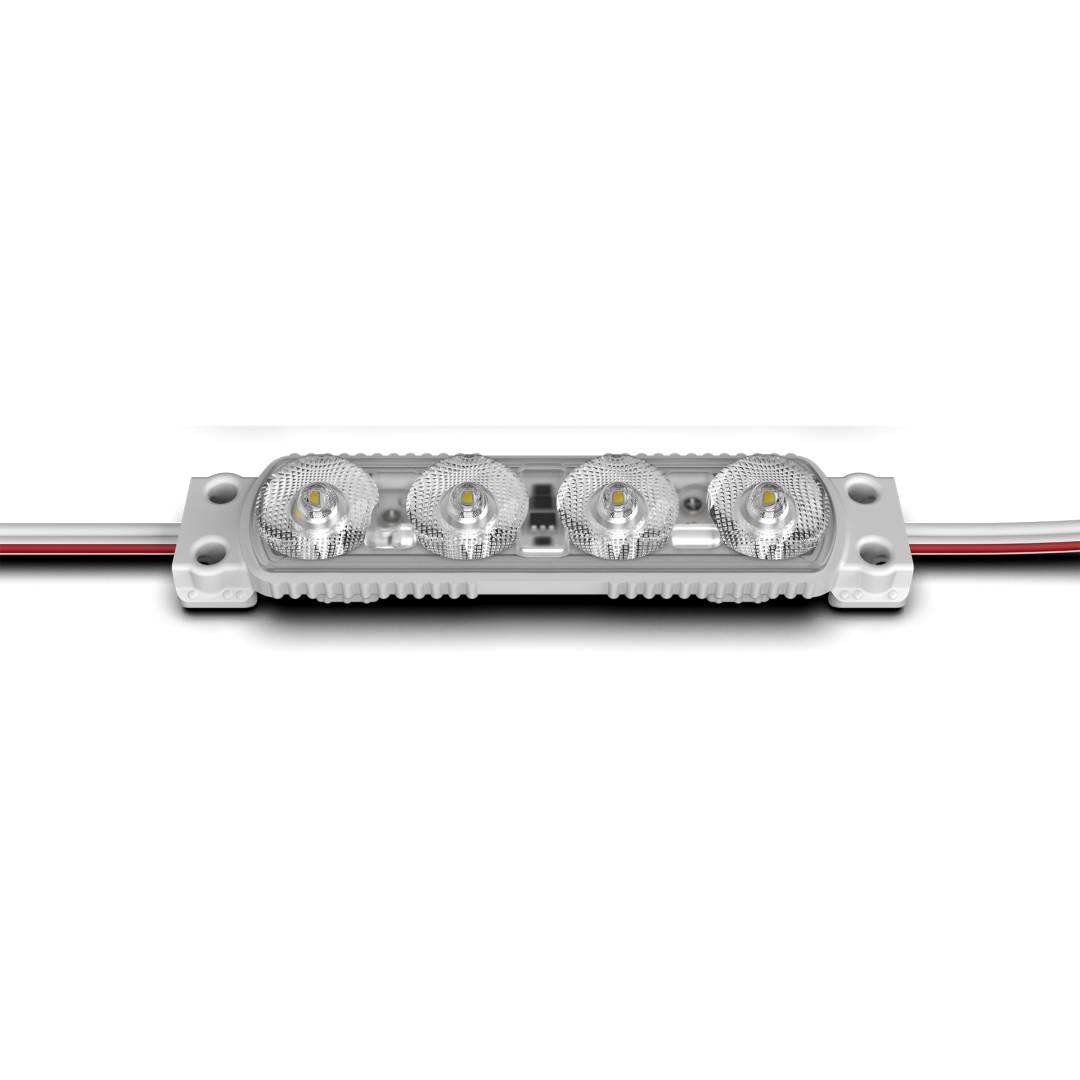

midi-4-2
midi-4-3

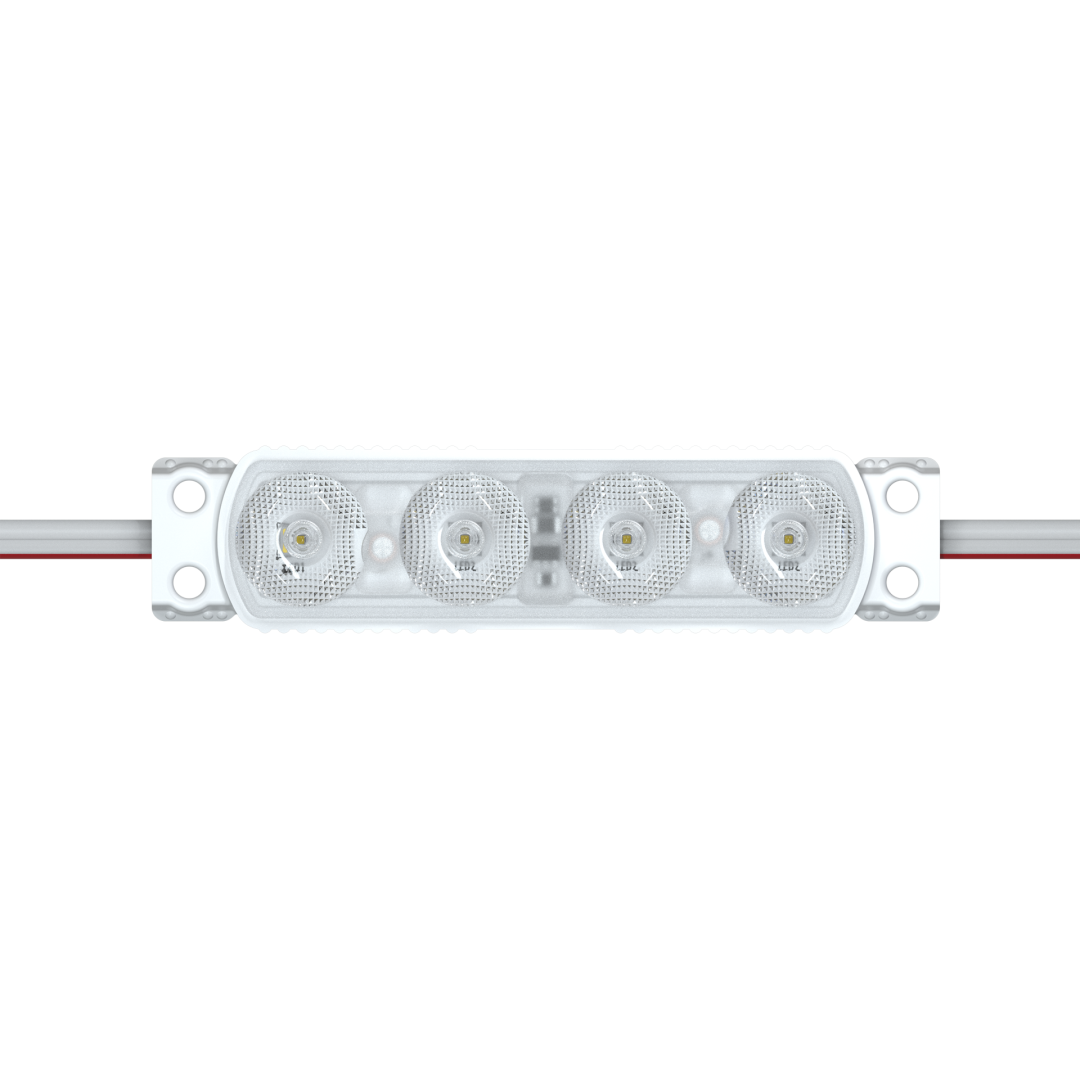

midi-4-0
LESS IS MORE

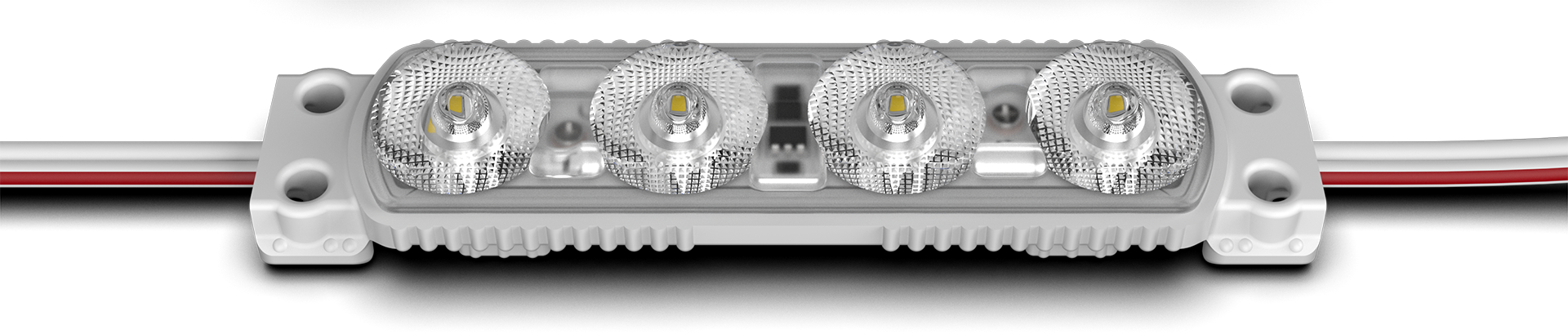

TMT MIDI 4
UP TO
10 YEAR
WARRANTY
UP TO
174 Lm
PER WATT
12-24 V
POWER OPTIONS
170°
BEAM ANGLE

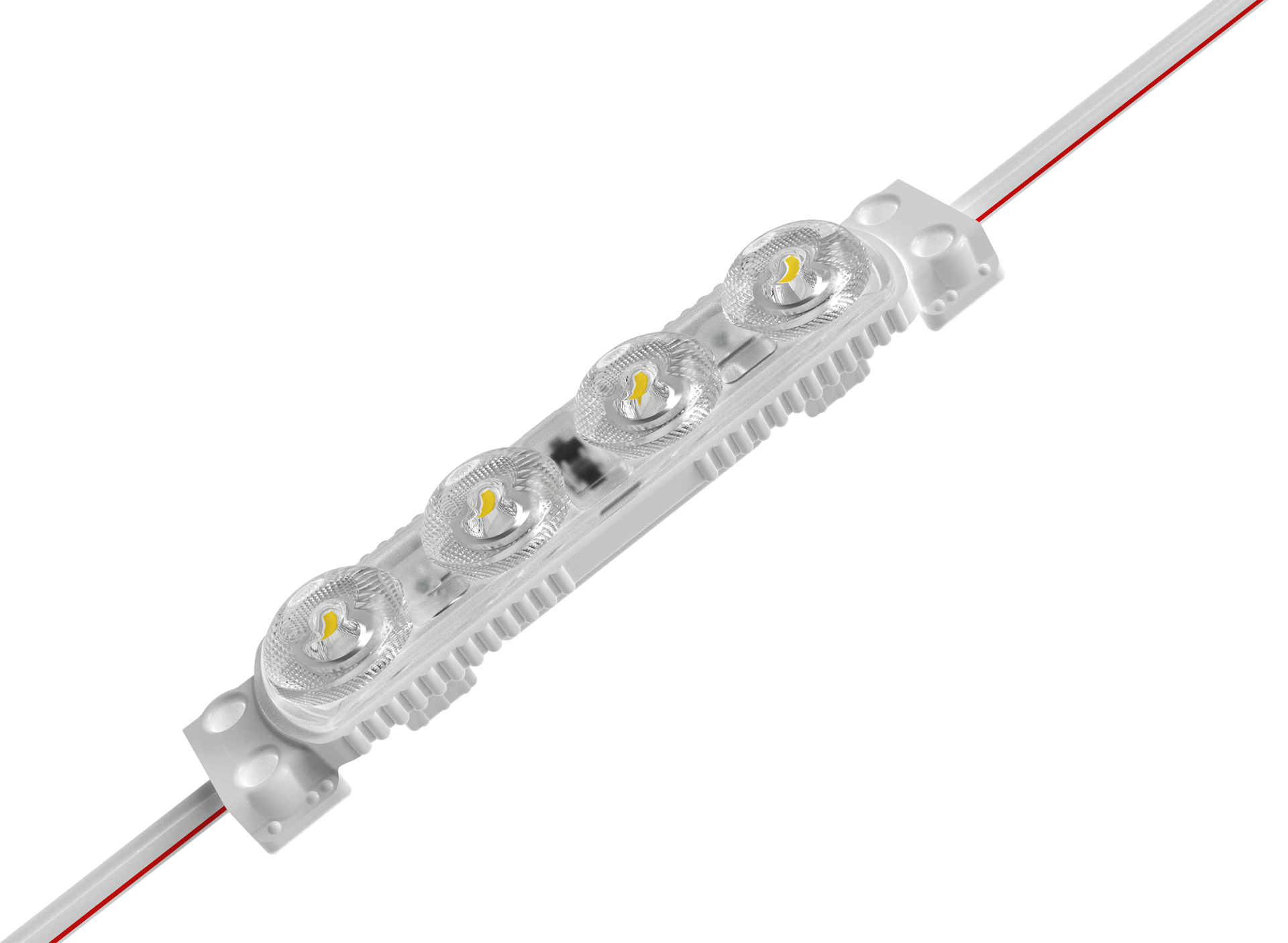

TMT MIDI 4

Technical Specifications

Operating Temperature:
-22°F to +140°F
Body Material:
Case: ABS | Optics: Optical PC
Finishing:
Ultrasonic Welding
Lifetime (Tm21):
>60,000 Hours
Adhesive Tape:
3M Foam
Strip Size:
25 Modules / Strip

Product Models

1.7 W 2 W
Order Code TMT-105729 TMT-106166 TMT-107640 TMT-105919 TMT-106167 TMT-107101 TMT-105813
CCT / COLOR 6.500K 10.000K 8.000K 6.500K 3.000K RED 6.500K
INPUT 12V 12V 12V 12V 12V 12V 24V
LUMEN 296 LM 340 LM 340 LM 340 LM 310 LM 95 LM 340 LM
EFFICIENCY 174 LM/W 170 LM/W 170 LM/W 170 LM/W 155 LM/W 48 LM/W 170 LM/W
C2C 12″ 12″ 12″ 12″ 12″ 12″ 12″
60W PS LOAD 30 PCS 25 PCS 25 PCS 25 PCS 25 PCS 25 PCS 25 PCS
MODULE / FOOT 1 PCS 1 PCS 1 PCS 1 PCS 1 PCS 1 PCS 1 PCS
LUMEN / FOOT 296 LM 340 LM 340 LM 340 LM 310 LM 95 LM 340 LM
WATT / FOOT 1.7 W 2 W 2 W 2 W 2 W 2 W 2 W

Downloads

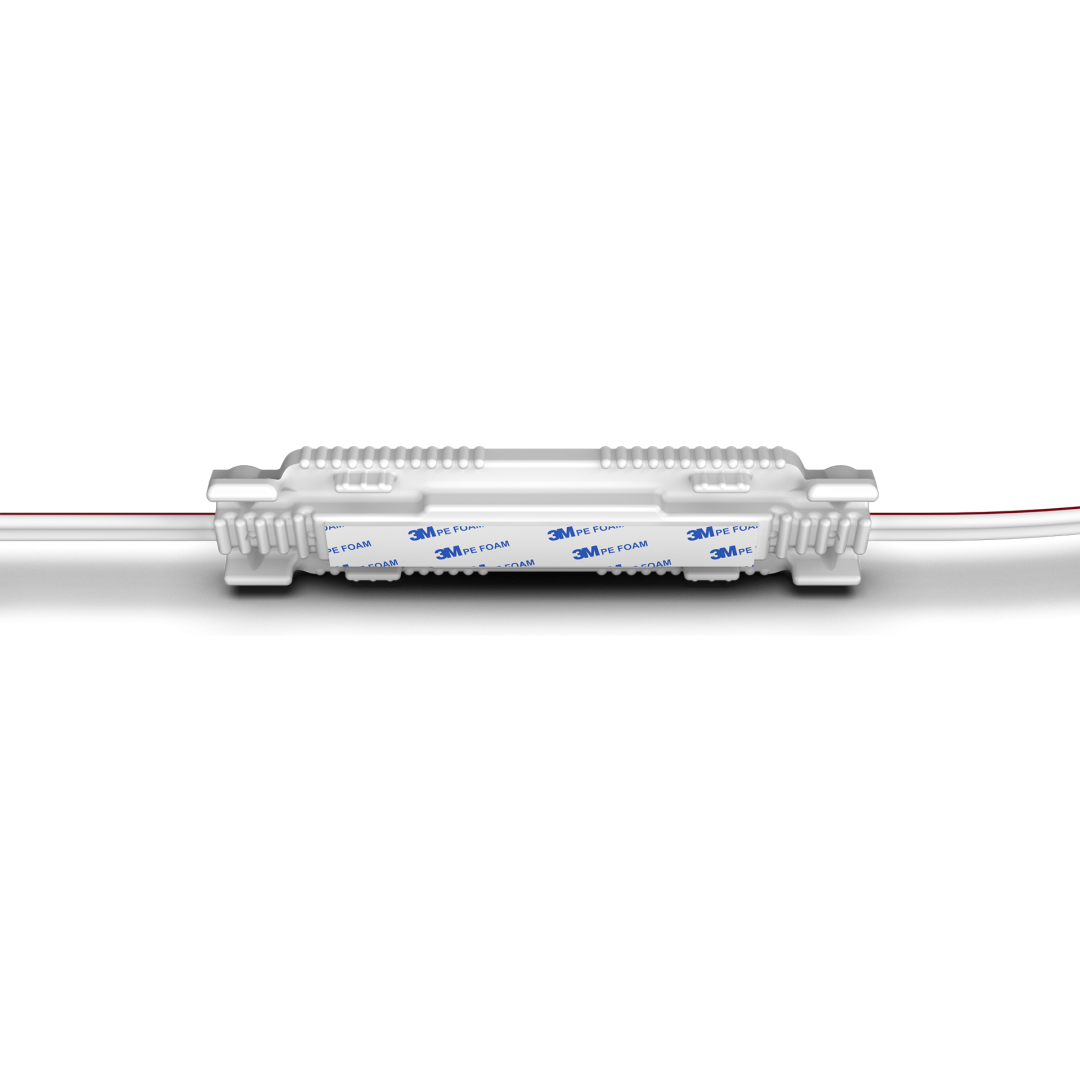

TMT MIDI 4 from back
12"
C2C Module Distance
3M FOAM™
Adhesive Tape
18 AWG
Tin Coated Copper Wire
IP 67
Ingress Protection
1.7 - 3W
Power Options
