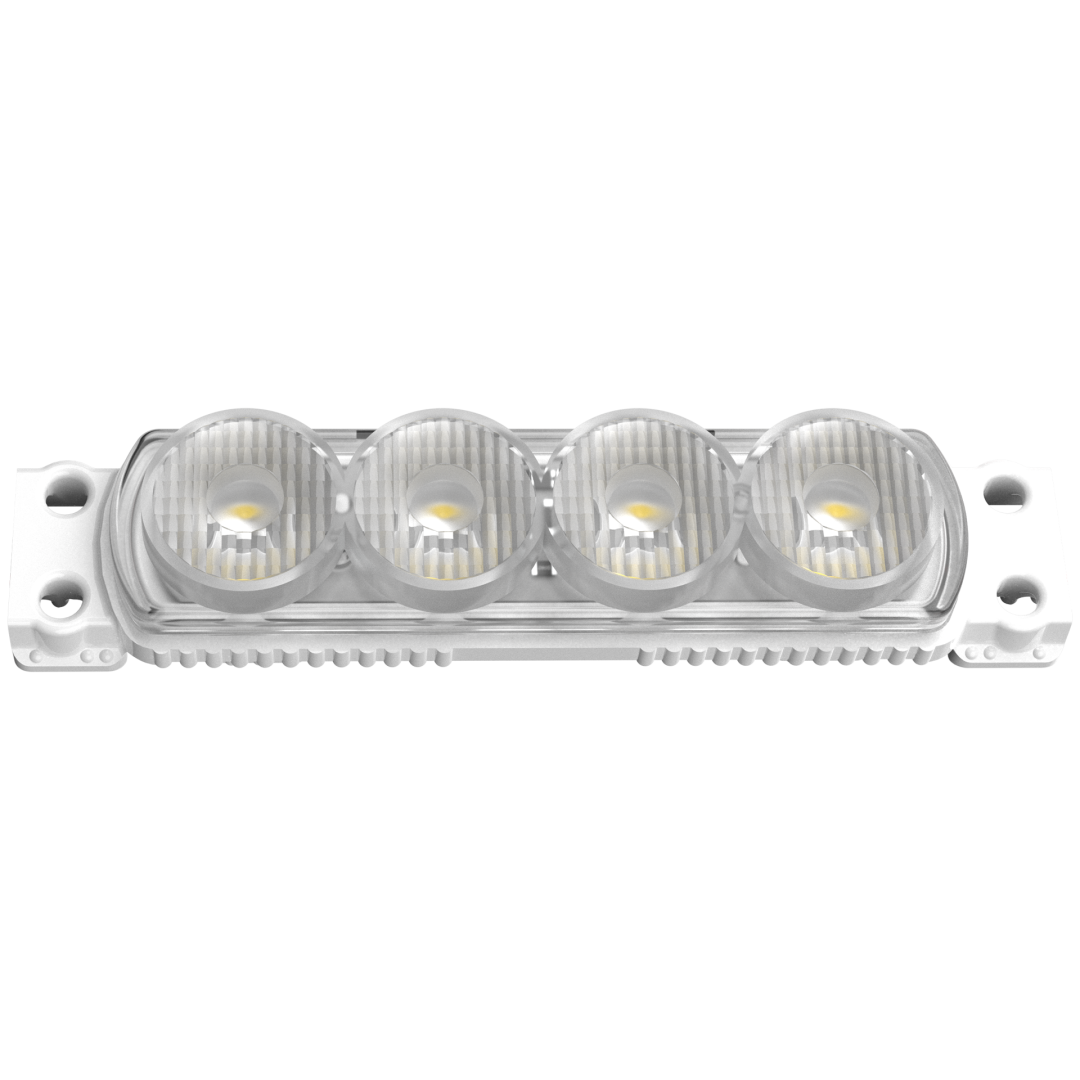

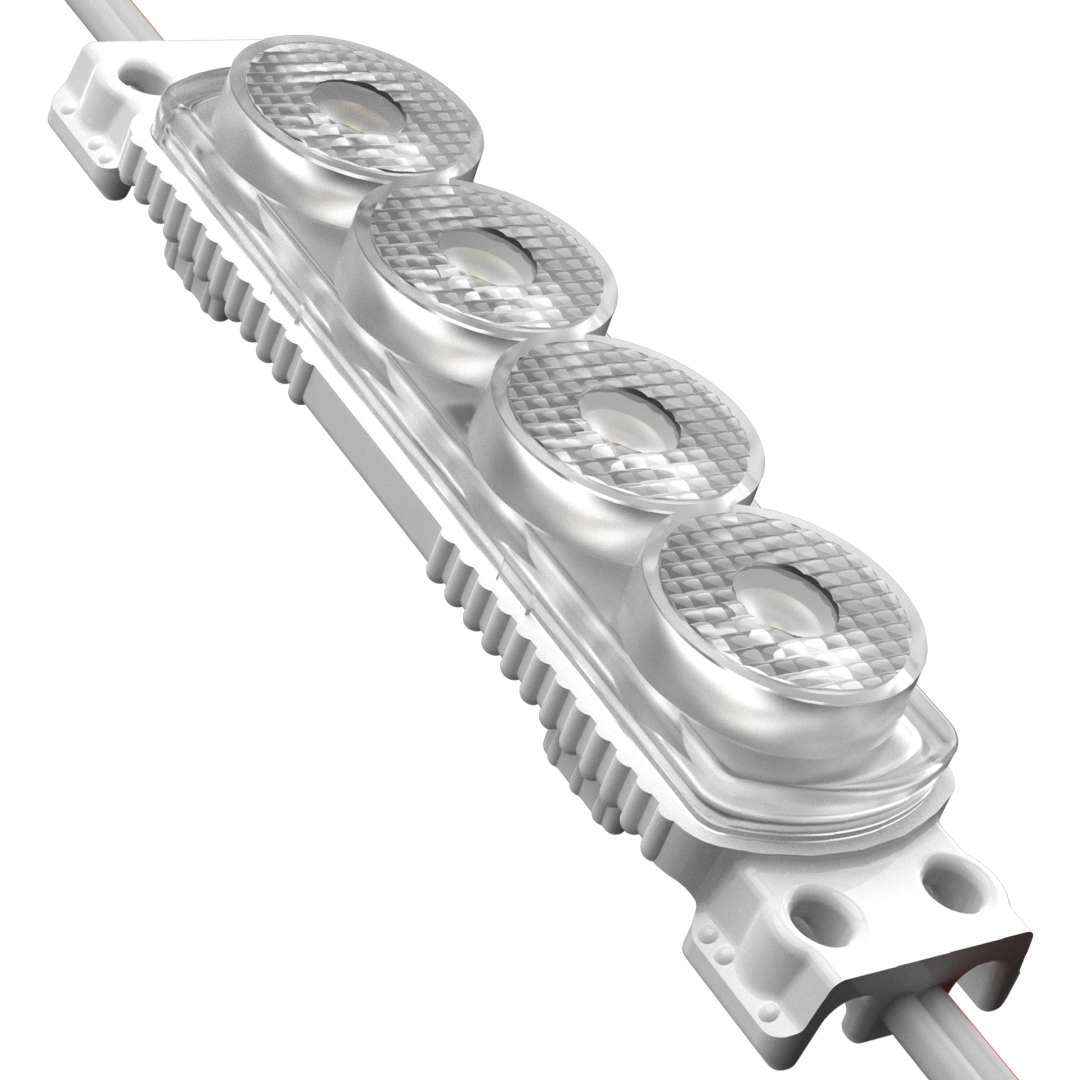

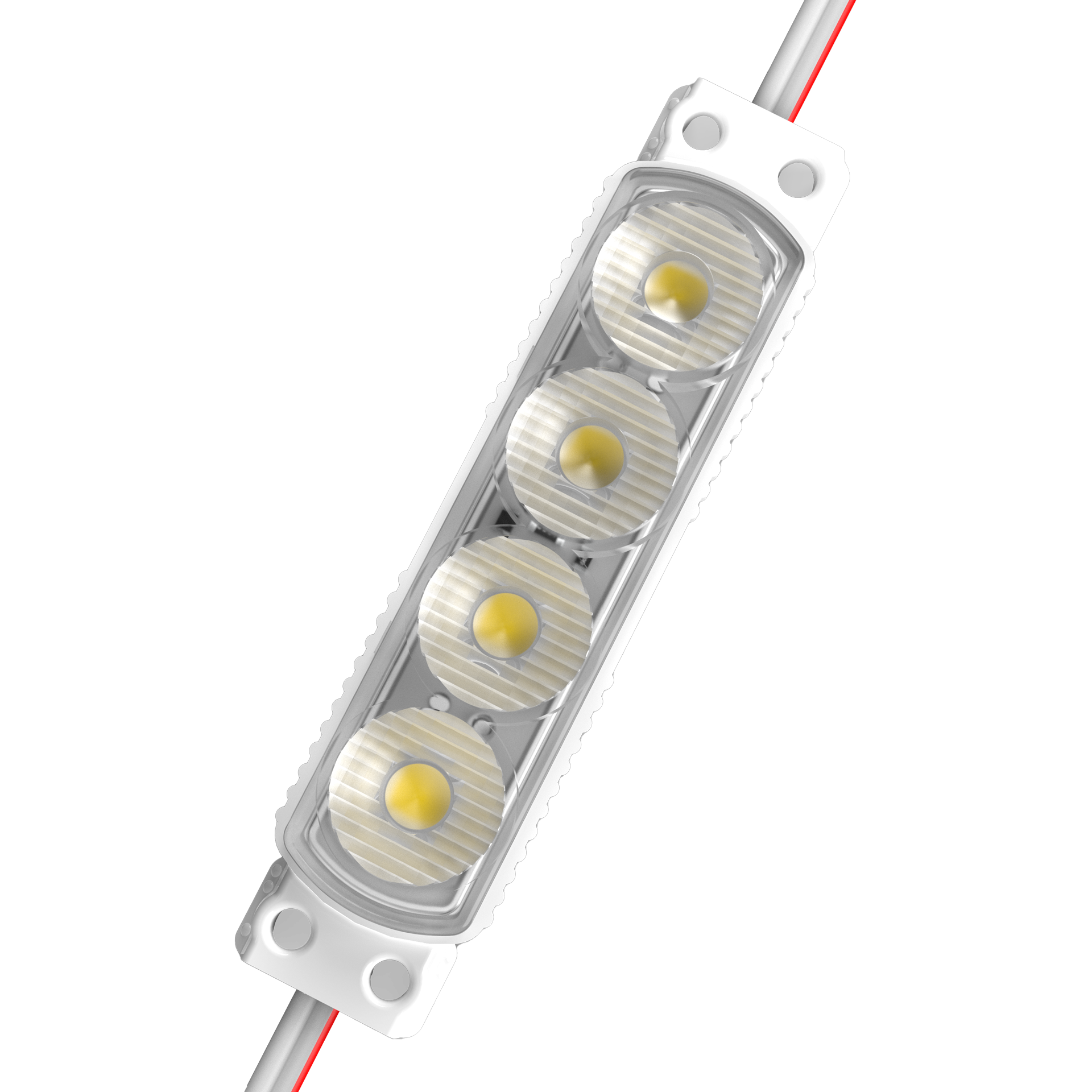

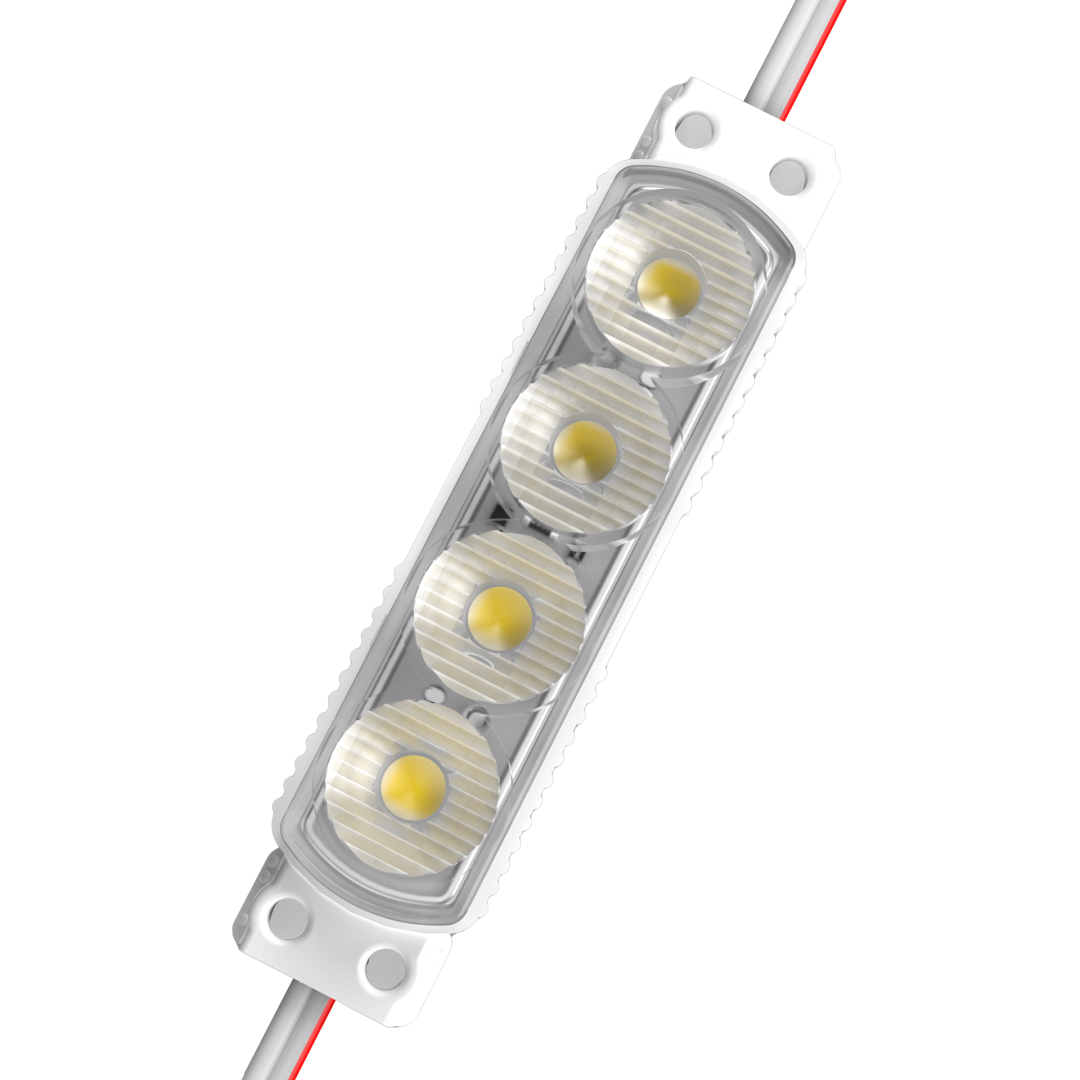

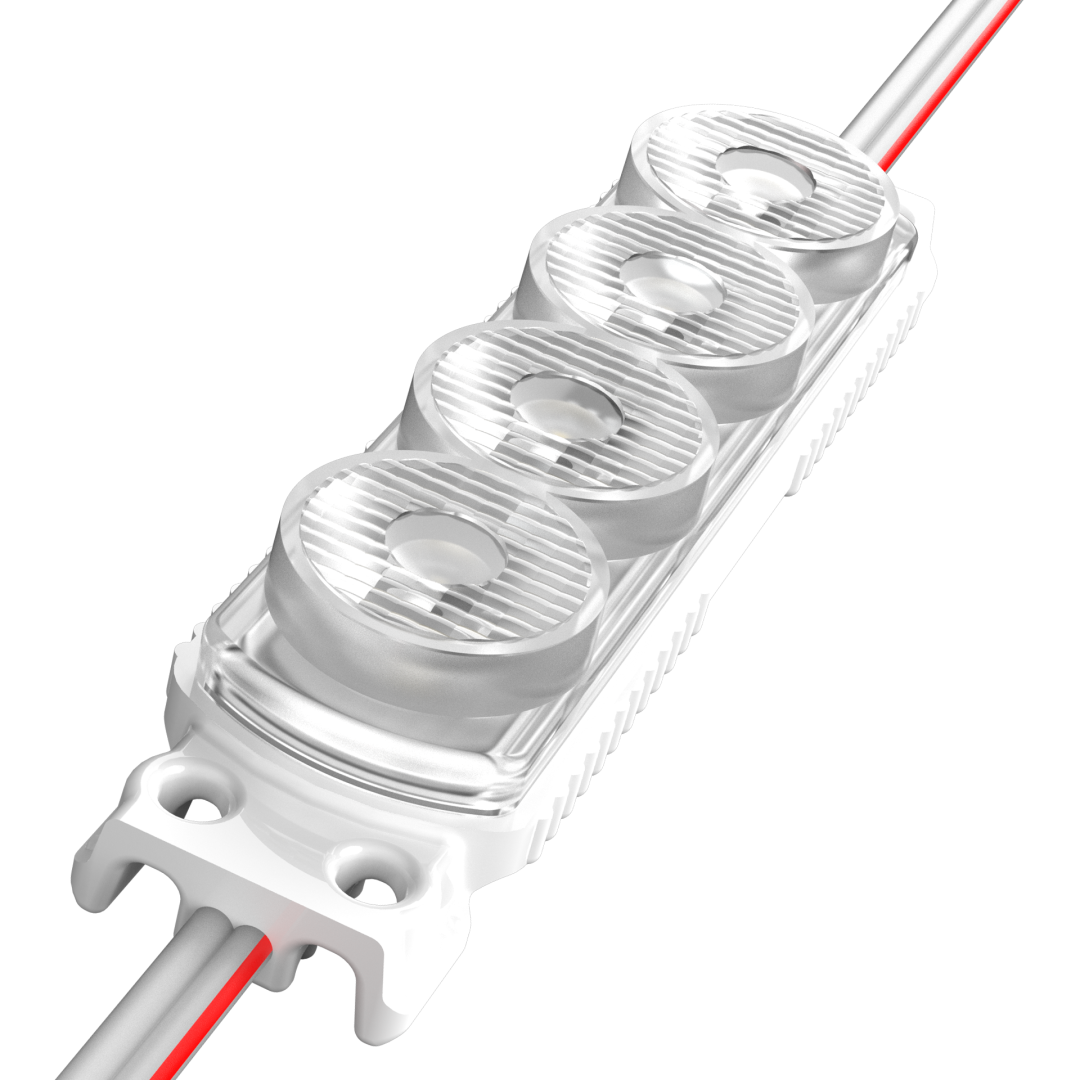

TMT Midi Edge

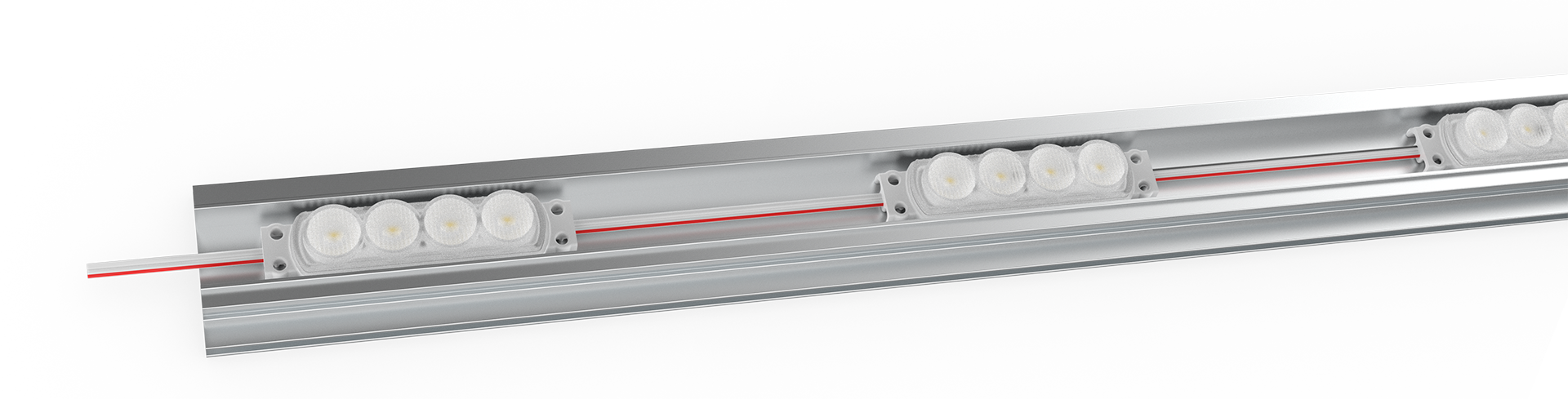

Lightbox and Cabinet Outdoor Edge Lighting Solution

TMT Midi Edge Game Changer Series module is designed to illuminate sign cabinets by installing on the perimeter of the cabinet. The innovative CrystaLens optics provide an 15° X 45° beam angle delivers industry leading illumination up to 7 feet across!

These phenomenal modules outperforms all other edge lighting products in the industry by delivering higher lumen output while reducing power requirements by more than 30% making it the perfect choice for sign cabinets, perimeter lighting and wall washers! Great for single and double sided cabinets and retrofits!

Features

  • Industry best optical light dispersion for edge lighting
  • Cable Hiding Technology
  • Clean White Technology
  • Snap-in Compatible with TMT Midi Sticks
0
1
2
3
TMT MIDI EDGE
FOR MEDIUM AND LARGE CHANNEL LETTERS
UP TO
5 YEAR
WARRANTY
UP TO
159 Lm
PER WATT
12-24 V
POWER OPTIONS
15° x 45°
BEAM ANGLE
TMT Midi Edge

Technical Specifications

Operating Temperature:
-22°F to +140°F
Body Material:
Case: ABS | Optics: Optical PC
Finishing:
Ultrasonic Welding
Lifetime (Tm21):
>60,000 Hours
Adhesive Tape:
3M Foam
Strip Size:
50 Modules / Strip

Product Models

Watt CCT / Color Order Code Input Lumen Efficiency C2C 60W PS Load Module / Foot Lumen / Foot Watt / Foot
1.7 W 6.500K TMT-105737 12V 296 LM 174 LM/W 7” 30 PCS 1.7 PCS 516 LM 2.96 W
2.4 W 6.500K TMT-105738 12V 435 LM 181 LM/W 7” 21 PCS 1.7 PCS 758 LM 4.18 W
2 W 6.500K TMT-105857 24V 340 LM 170 LM/W 7” 25 PCS 1.7 PCS 593 LM 3.49 W
